Products > 45mm Ball Bearing Slides > > 45mm self closing ball bearing slide

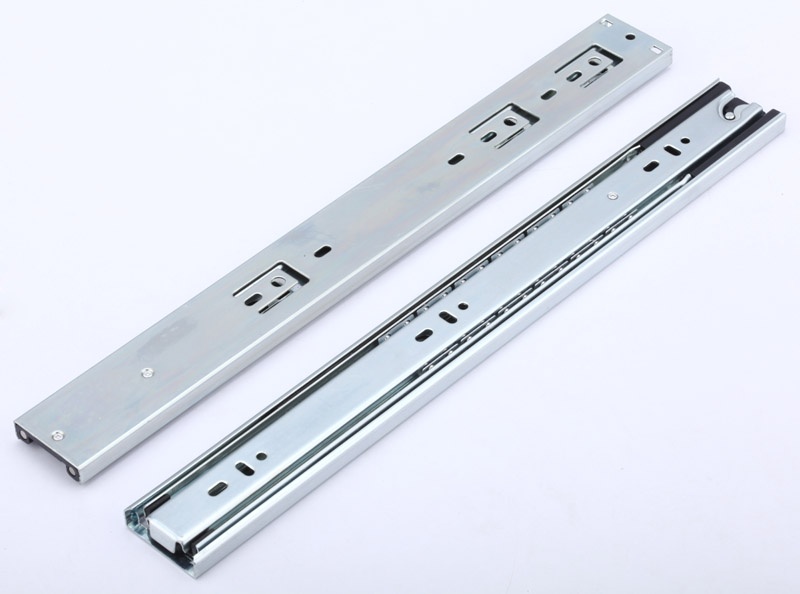

Product name : 45mm self closing ball bearing slide
Item : 2013121617148
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


  Details:
45mm full extension self -closing slide

Material: Work hardened cold rolled steel

Mounting: Side, for frame and frameless construction

Load capacity: 45kgs/450mm

Finish: Zinc plated ,Black

Thickness: 1.2/1.2/1.5mm ;1.1/1.1/1.4mm;1.0/1.0/1.2mm

The installation gap: the installation gap between rail is 12.7+/-0.1mm

Size: 300mm-900mm

Option: 1" over travel

Can pass 48H salt testing and 50000 time cycle testing
